六角头管塞

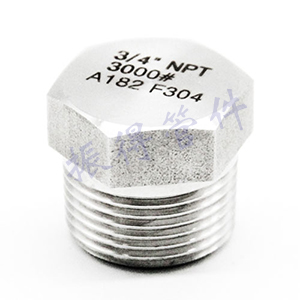

   产品实物图:
锻制外六角头管塞 高压外六角头管塞
锻制外六角头管塞 高压外六角头管塞

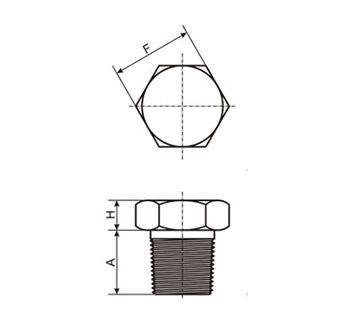

  产品结构图:

锻制六角头管塞 高压外六角头管塞

锻制外六角头管塞

高压外四角头管塞



  六角头管塞产品参数表:

公称通径
Nominal Diameter
螺纹长度
Length
(Min)
A
方形头Square Head Plug 圆形头Round Head Plug Hex.Head Plug&Bushing
方形高度
Height of
Square
(Min.)
B
Width Flat
(Min.)
C
Nominal
Diameter
of Head(Nom)
D
Length
(Min.)
E
Width Flat
(Nom.)
F
Hex.Height(Min.)
DN NPS Bushing
G
Plug
H
6 1/8" 10 6 7 10 35 - - 6
8 1/4" 11 6 10 14 41 16 3 6
10 3/8" 13 8 11 18 41 18 4 8
15 1/2" 14 10 14 21 44 22 5 8
20 3/4" 16 11 16 27 44 27 6 10
25 1" 19 13 21 33 51 36 6 10
32 1.1/4" 21 14 24 43 51 46 7 14
40 1.1/2" 21 16 28 48 51 50 8 16
50 2" 22 18 32 60 64 65 9 18
65 2.1/2" 27 19 36 73 70 75 10 19
80 3" 28 21 41 89 70 90 10 21
100 4" 32 25 65 114 76 115 13 25
备注:
1: 每种规格的上下值分别代表最大、最小尺寸。
2: 承插壁厚外围平均值不低于所列值,最小值仅限于局部区域。
3: 上述六角头管塞尺寸符合GB/T14383、GB/T14626、SH3410、HG/T21634、JIS B2316、ANSI B16.11、BS3799标准。



  六角头管塞生产工艺流程:

尺寸/Size 1/8″~4″ (DN6~DN100)
压力等级/Class 2000 LBS, 3000 LBS, 6000 LBS
连接形式/Type Threads: American National Standard Taper Pipe Threads,
NPT(ANSI/ASME B1.20.1-1983),
Also available in other thread forms: Rc, Rp, BSP, BSPT,BSPP and in any combination.
材质/Materal 碳钢,不锈钢,合金钢,双相,镍合金,低温钢,铜镍
Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel
表面处理/Surface Treatment 热浸镀锌、环氧树脂和FBE涂层、电抛光、喷砂、焊接
Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Soldering
制造工艺/Manufacturing process Cutting, Heat treatment, Forging, Machining
下料锯切、热处理、模锻、冲切边、喷砂、机械加工
制造标准/Manufacturing Standards ANSI B16.11, GB/T4383-2018,BS-3799



  六角头管塞生产用材料等级:

碳钢/Carbon Steel 20#, Q235B, ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2
不锈钢/Stainless Steel ASTM A182 F304, 304L, 316, 316L, 310S, 316Ti, 317L, 321
合金钢 /Alloy Steel ASTM / ASME A 182, ASTM / ASME F5, F9, F11,F22, F 91
双相钢 /Duplex & Super Duplex Steel ASTM A 182 – F51, F53, F55, S31803, S32205, S32550, S31254, SMO254, S32750, S32760, S32950.
铜合金/Copper Alloy Steel ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)
镍合金 /Nickel Alloy ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276)



  六角头管塞产品尺寸数据表:

Nominal Diameter Length
(Min)
A
Square Head Plug Round Head Plug Hex.Head Plug&Bushing
Height of
Square
(Min.)
B
Width Flat
(Min.)
C
Nominal
Diameter
of Head(Nom)
D
Length
(Min.)
E
Width Flat
(Nom.)
F
Hex.Height(Min.)
DN NPS Bushing
G
Plug
H
6 1/8" 10 6 7 10 35 - - 6
8 1/4" 11 6 10 14 41 16 3 6
10 3/8" 13 8 11 18 41 18 4 8
15 1/2" 14 10 14 21 44 22 5 8
20 3/4" 16 11 16 27 44 27 6 10
25 1" 19 13 21 33 51 36 6 10
32 1.1/4" 21 14 24 43 51 46 7 14
40 1.1/2" 21 16 28 48 51 50 8 16
50 2" 22 18 32 60 64 65 9 18
65 2.1/2" 27 19 36 73 70 75 10 19
80 3" 28 21 41 89 70 90 10 21
100 4" 32 25 65 114 76 115 13 25

1. Dimensions in Millimeters.
2. Dimensions refer to ANSI B16.11
3. Dimensions B is minimum length of perfect thread.
The length of useful thread(B plus threads with fully formed roots and flat crests) shall not be less than L2 (effective length of external thread) required by American National Standard for pipe threads(ANSI/ASME B1.20.1)
4. Dimensions of BSP and PTare available if required.
5. Dimensions may vary according to the customer's and manufacturer's requirement.
